Advantages of Continuous Cast
Saving money in the casting industry
Understand how the continuous casting process produces the highest-quality parts at the lowest production costs.
Introduced in the 1950s, continuous casting was adopted by manufacturers as a money-saving alternative to ingot casting. Today, it remains one of the world's most popular, cost-effective casting techniques.
Our products are perfect for straight-wear applications in the hydraulics industry and, because of their superior metallurgical status, are ideal metals for bushings and bearings.
Before doing business with us, you must understand why we offer the best metal CNC machining & specialty castings services in Wisconsin and across the US. Consider what continuous casting is and how our role in this process can help you save money.
Contact us for a free quote on continuous cast iron stock.
What is Continuous Casting?
To streamline the production of metal slabs and bars, the continuous casting process made it much more efficient to cast metals such as brass, steel, aluminum, and copper. With the nickname “strand casting,” continuous casting is a simple four-step process that can improve productivity at any casting company. The steps are as follows:
- First, a steel ladle containing molten metal is tilted to pour the metal through a gas-tight refractory tube into a container called a tundish.
- Next, holes at the bottom of the tundish allow molten metals to flow into a series of copper molds at a controlled rate (Copper has great thermal conductivity, so it can cool the metals without sticking to them).
- Then, as the outer shell of the metals solidifies, they are drawn through water sprays and curved pipes to help them cool.
- Finally, the metals emerge as solid strands of brass, copper, steel, cast iron, or aluminum, cut into manageable strands for further manipulation, storage, or shipment.

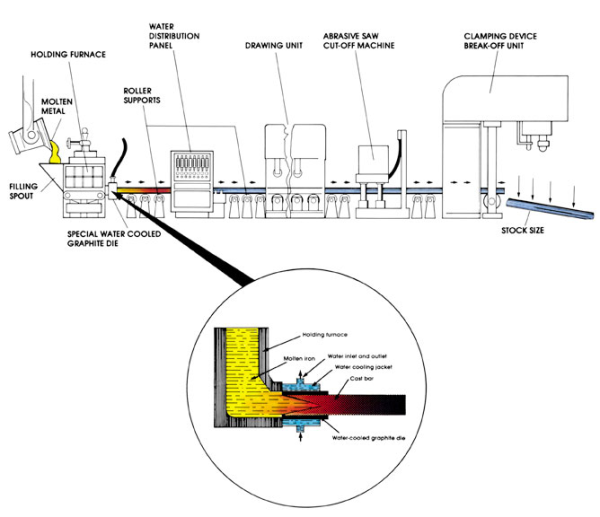

Although the process is repetitive and tedious, it is far superior to the ancient method of casting ingots and can save you time and money. Utilizing the continuous casting method is your key to profitability. The diagram below showcases this remarkable process.
Comparing continuous casting to other common casting methods
From blooms to rounds, billets to thin slabs, and conventional beam blanks to hear-net-shape beam blanks, there are several shapes created by the continuous casting process. In the past, parts were made by workers responsible for every step, but today, automated systems have improved the precision of continuous casting.
When choosing which casting option you think is best for the parts you need completing, there are three main components you should consider:
- Time Available
- Part Complexity
- Budget
Continuous Casting vs:

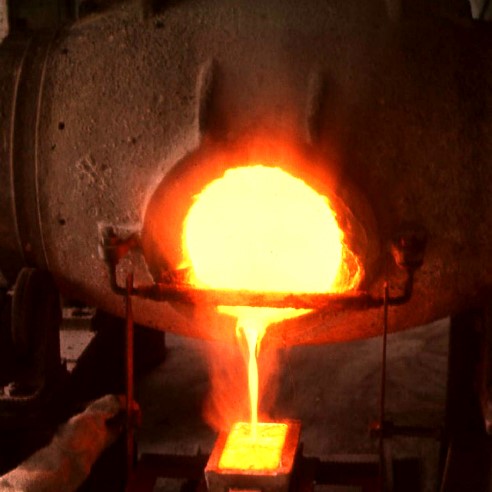

Continuous casting vs ingot casting
Before continuous casting became popular, manufacturers relied on ingot casting to produce slabs and bars. Unfortunately, 5 percent of ingots produced in most production runs are scrapped due to cracks and deformations caused by induced stress.
Five percent of 10 blocks made may not sound too bad, but 5% of 250? That's 13 wasted blocks, which, if made of steel, could cost $200 in wasted materials! The numbers start adding up if you produce more than 500 blocks a month with ingot casting.
You can optimize the cost-effectiveness of your production while avoiding waste during continuous casting. This is the biggest advantage of the continuous casting process. The bars and slabs created are solid, with no cracks, meaning that, unlike ingot casting, you will not have to throw away cracked products. One of the best ways to save money is to increase efficiency. With continuous casting, you can produce large quantities of metal slabs and bars in shorter periods than with ingot casting.
As one of the best continuous cast iron suppliers, AIA/Lawton Standard is your go-to for cost-effective gray and ductile iron continuous cast iron stock and custom metal components.

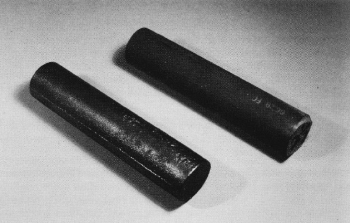

Continuous casting vs. sand casting
The continuous casting method offers a superior surface finish and eliminates internal porosity and centerline shrinkage.
The majority of metal castings are produced through the sand casting process. However, this more popular choice has deficiencies due to continuous casting. When deciding how to source your parts, remember the drawbacks of sand casting.
Sand casting can produce several setbacks due to:
- Shifting molds
- A non-uniform cooling rate
- Insufficient materials
- Cracks forming in the sand mold
- Low permeability
- Too high a melting temperature
Continuous casting can even cost less. When you want molds created for parts with cores, the process takes much longer, and everyone knows money is time. Need large parts created with the sand casting process? The bigger the mold, the bigger the price.
Continuous casting is superior to sand casting because of its speed and convenience. If you need bars for your next project, don’t have them poured one by one in perfectly created molds for every part you need. By sawing metal bars into the perfect sizes you need without wasting time on molds, you’ll save money on time and materials when choosing continuous casting over sand casting.
Continuous casting vs. extrusion molding
Known for its ability to form metals and plastics into desired shapes, extrusion molding is a popular option used by companies worldwide to produce simple parts. Unlike continuous casting, the aluminum, iron, and steel extrusion process uses a ram to force one metal against another into a mold.
Extrusion is great for manufacturers who need basic bars and rods, but extrusion will only get you so far if you are seeking more complex parts. Continuous casting has been a competitor to extrusion for years because it offers a similar process at a lower cost with a higher success rate. Need more information on what sets these two options apart? Learn more below about why our customers choose continuous casting over extrusion again and again:
Continuous Casting:
- Less expensive due to lighter weight
- Easy to cast voids and cores without excessive machining
- A faster and cheaper process than extrusion
- High tolerances with complex cast parts
Extrusion Molding:
- Can only create uniform, cross-sectional shapes
- Surface oxidation is a risk - and can only be corrected with mechanical or acid strategies
- Cannot match the complex casting abilities of continuous casting
- Extruded parts can easily crack inside and out
Supplier of continuous cast iron with CNC machining services
Profitability and productivity are two of the most important benefits any product can supply to a manufacturing company. If you want to invest in your production of slabs and bars, look no further than AIA/Lawton Standard’s best brass, aluminum, steel, and copper alternative: Continuous Cast Iron Bar. It’s a superior product, known for:
- Saving manufacturers money
- Increasing machining performance
- The longest-lasting custom metal components
Our continuous cast iron offers an affordable and superior alternative to other metals. Its greater metallurgical properties make it superior to older, traditional sand castings. Our bar also contains microscopic graphite flakes, which help retain oil and keep machine parts lubricated during continuous casting. In addition to reducing production time, we offer precision machining services that meet your company’s needs.
We provide raw materials and fully machined metal parts, allowing you to customize your supply program completely. And our CNC services save you money on transportation, inventory, and manufacturing costs. Thus, we truly are a top provider of metal CNC machining and specialty castings in Wisconsin.
